# How to use Synology Hyper Backup with eazyBackup e3 Object Storage

Backing up your data with **Synology Hyper Backup** to our S3 compatible object storage is simple and secure. We will walk you through the steps to configure Hyper Backup to store encrypted backups directly in your e3 cloud storage bucket.

### What You’ll Need

Before we begin, you will need the following:

* Start a free **eazyBackup e3** trial
* Your **S3 access key** and **secret key**
* The **endpoint URL**
* The **bucket name** you’ll use for backups
* Locate or install the **Hyper Backup app** on your Synology NAS

1. Start a free trial of the eazyBackup e3 object storage service.&#x20;
2. Login to the eazyBackup Dashboard. From the eazyBackup menu, select e3 Object Storage -> Buckets.&#x20;

<figure><img src="https://2026595258-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FSvHh4wgiJn6bl81UXqVT%2Fuploads%2FVX8aTgkeWjo3DnZpKQW5%2Fe3-cloud-storage-menu.png?alt=media&#x26;token=9a1079c5-c17b-4931-8289-c571fa1ce4bf" alt="" width="158"><figcaption></figcaption></figure>

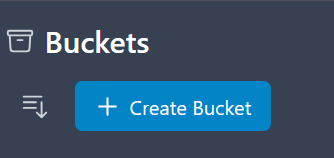

3. Create a new bucket that will be used to store your backup data.&#x20;

<figure><img src="https://2026595258-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FSvHh4wgiJn6bl81UXqVT%2Fuploads%2F8ikMk79bkIjZSDuvkjxj%2Fe3-object-storage-create-bucket.png?alt=media&#x26;token=b3816f40-9d9c-42ab-ab18-88292afb7846" alt="" width="167"><figcaption></figcaption></figure>

Choose the type of bucket for your backup, you can optionally enable Versioning or Object Locking on the new bucket. The use of Versioning is highly reccomended to help protect your backup agaist ransomeware threats.

<figure><img src="https://2026595258-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FSvHh4wgiJn6bl81UXqVT%2Fuploads%2FrM4mrvU0tDuFknabLd3p%2Fe3-create-bucket.png?alt=media&#x26;token=f3da350c-26e3-480e-9abc-2b562f5cd21b" alt="" width="319"><figcaption></figcaption></figure>

4. Once you have created backup to store your backup data, open the Hyper Backup app on your Synology NAS.&#x20;

<figure><img src="https://2026595258-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FSvHh4wgiJn6bl81UXqVT%2Fuploads%2FgoUbwGbLtflxLqZE7pLn%2Fsynology-hyper-bakcup-step1.png?alt=media&#x26;token=07947cad-c82c-4cc7-a4ed-80d3116a2246" alt=""><figcaption></figcaption></figure>

5. When prompted to select the Backup Type, choose 'Folders and Packages'.&#x20;

<figure><img src="https://2026595258-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FSvHh4wgiJn6bl81UXqVT%2Fuploads%2F5VlWI8YgHM0PozzQHYm3%2Fsynology-hyper-bakcup-step2.png?alt=media&#x26;token=187f569f-41ff-4538-82e3-a91966f28a60" alt="" width="375"><figcaption></figcaption></figure>

6. Next, select the destination for your backup. Scroll down and locate the 'S3 Storage' cloud service. Clck Next to continue.&#x20;

<figure><img src="https://2026595258-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FSvHh4wgiJn6bl81UXqVT%2Fuploads%2FlaBBSC8yJZCFzS0jg4xo%2Fsynology-hyper-bakcup-step3.png?alt=media&#x26;token=12ffa441-b45f-4cf0-98b2-3cb91d178b80" alt="" width="375"><figcaption></figcaption></figure>

Configure the backup destination with the following settings:&#x20;

* S3 Server: Custom Server URL
* Server address: Enter the service address, you can find your service address on the 'Access Keys' page of our storage dashboard.
* Signature Version: V4
* Request Style: Path-Style
* Access Key / Secret Key: Copy your Access key and Secret key from the 'Access Keys' page of our storage dashboard.
* Bucket name: If you have correctly configured the server address and access keys, you should be able to click on the 'Bucket name' field to retreive a list of buckets from your storage account. Select the bucket name you created back in step 3.&#x20;
* Once all the fields are filled in, click Next to continue.&#x20;

<figure><img src="https://2026595258-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FSvHh4wgiJn6bl81UXqVT%2Fuploads%2FH3SiHzM1kFqmScU3kIVe%2Fsynology-hyper-bakcup-step4.png?alt=media&#x26;token=a7f9e9b1-788d-44ce-8a74-d07ce03f6d2b" alt="" width="375"><figcaption></figcaption></figure>

7. Select the data you would like included in your backup, click Next to continue when you are done.&#x20;

<figure><img src="https://2026595258-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FSvHh4wgiJn6bl81UXqVT%2Fuploads%2FhkffekNrALugLMWTiA63%2Fsynology-hyper-bakcup-step5.png?alt=media&#x26;token=ca4f7fbe-6ea2-4736-b362-9f8e1974341c" alt="" width="375"><figcaption></figcaption></figure>

8. Configure a schedule for your backup. Typically, you will want ot run your backup outside of normal business hours. Give the task a name and choose a time of day to start the backup. If you want to encrypt your backup data before it's transmitted your bucket, check the box to enable the 'Client-side- encryption.

<figure><img src="https://2026595258-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FSvHh4wgiJn6bl81UXqVT%2Fuploads%2Fztyw9z9Pak8aXVg6nKsO%2Fsynology-hyper-bakcup-step6.png?alt=media&#x26;token=e6614553-f6d1-4b07-a1cd-d3ef3c27e2e8" alt="" width="375"><figcaption></figcaption></figure>

Carefully read the notice regarding data encryption. Save your encryption key somewhere safe, you will not be able to restore your data without the encryption key.&#x20;

<figure><img src="https://2026595258-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FSvHh4wgiJn6bl81UXqVT%2Fuploads%2FQg7pSL6ODerWtJ3LPgRE%2Fhyper-backup-encryption-warning.png?alt=media&#x26;token=e1656ca9-5347-4690-b496-a414893be342" alt="" width="375"><figcaption></figcaption></figure>

{% hint style="info" %}
Store the key securely, if a ransomware attacker gains access to the Hyper Backup encryption key, the consequences can be serious. An attacker that gains access to the key will be able to read and steal backup data. In addition, they will may be able to Delete or corrupt backup data, making recovery impossible.
{% endhint %}

9. Configure the retention settings for your backup. Enter the number of backup versions you would like to keep. If you selected a daily backup schedule, 30 versions will retain 30 days of backup jobs.

* Set the number of versions to meet your retention needs.
* Keep in mind that each backup version will consume a small amount of additional storage.
* Click Next when you are done.

<figure><img src="https://2026595258-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FSvHh4wgiJn6bl81UXqVT%2Fuploads%2FXXAFL9aXRSt1T2UDBcDY%2Fsynology-hyper-bakcup-step7.png?alt=media&#x26;token=28a5e1d8-7d00-4818-80ff-0df00f34aac2" alt="" width="375"><figcaption></figcaption></figure>

10. Review the summary of your new backup. Click 'Done' to save the backup job.&#x20;

<figure><img src="https://2026595258-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FSvHh4wgiJn6bl81UXqVT%2Fuploads%2FNegf55jW7CbHcLB4oiD6%2Fsynology-hyper-bakcup-step8.png?alt=media&#x26;token=e045f847-bec2-4519-b09b-1bb81fe3fe0c" alt="" width="375"><figcaption></figcaption></figure>

11. After your your first backup has completed, you can check that your e3 bucket contains the backup data. The files will be encrypted and you will not be able to verify individual files, but you check check the size and contents of the bucket.&#x20;

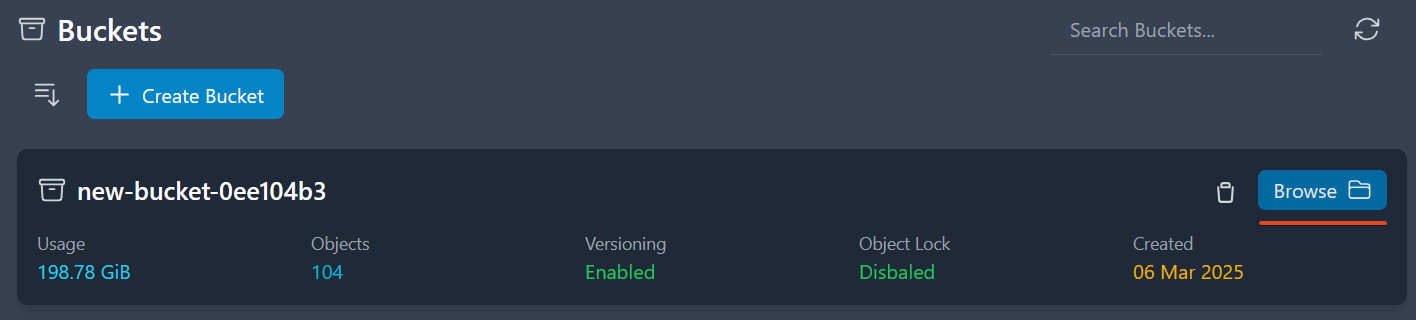

* From our Dashboard, visit the 'Bucket's page, here you will be able to view the size of the bucket.&#x20;

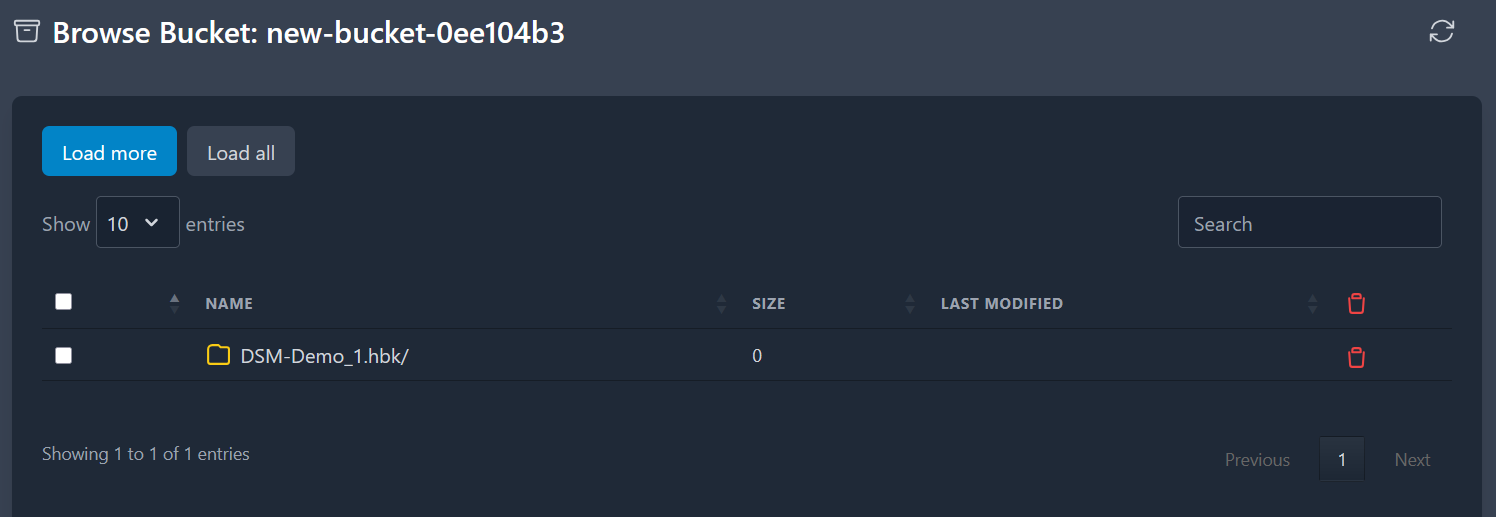

* Click the 'Browse' button to explore the contents of the bucket

<figure><img src="https://2026595258-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FSvHh4wgiJn6bl81UXqVT%2Fuploads%2FAel8N9pT30nabYuxfzpw%2Feazybackup-e3-bucket-browse.png?alt=media&#x26;token=eea017da-10ef-4f6d-a339-4e05bce9e09d" alt=""><figcaption></figcaption></figure>

<figure><img src="https://2026595258-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FSvHh4wgiJn6bl81UXqVT%2Fuploads%2FBGPuHsPIPVOcPKCSKsmm%2Feazybackup-e3-bucket-browse-2.png?alt=media&#x26;token=6fa8a674-2c34-4313-909c-08539c5632aa" alt=""><figcaption></figcaption></figure>

<figure><img src="https://2026595258-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FSvHh4wgiJn6bl81UXqVT%2Fuploads%2FQxa781Jt21HJzdvvgF16%2Feazybackup-e3-bucket-browse-3.png?alt=media&#x26;token=4c6a777f-0326-49a2-9f10-945026dfd8b5" alt=""><figcaption></figcaption></figure>
